Removing inner gaiter

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Clean output shaft and clamp with a cloth in vice.

Unfasten hose clip (1).

Using a suitable tool, force gaiter cap (2) off joint or sealing cover.

Fig 1: Cleaning Output Shaft And Clamp With Cloth In Vice

G04726471

Courtesy of BMW OF NORTH AMERICA, INC.

Push back gaiter with cap.

IMPORTANT: Risk of damage!

Make sure that joint does not fall apart.

Clamp joint (1) in vice.

Using a suitable tool, force sealing cover (2) off joint (1).

Fig 2: Clamping Joint In Vice

G04726472

Courtesy of BMW OF NORTH AMERICA, INC.

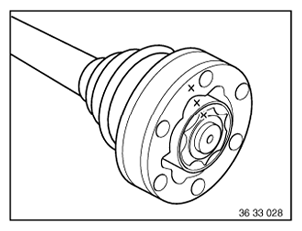

IMPORTANT: Mark positions in relation to each other of ball hub, ball cage and joint at ends.

NOTE: If the joint falls apart, it can only be reassembled correctly with the aid of the markings.

Fig 3: Identifying Ball Hub

G06211635

Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlip (1).

Fig 4: Identifying Circlip

G04726474

Courtesy of BMW OF NORTH AMERICA, INC.

Grip output shaft.

Using special tool 26 1 110 and a suitable tool (for hollow shaft 21 2 120 ), press output shaft out of joint (1).

Clean joint (1) carefully.

Fig 5: Pressing Output Shaft Out Of Joint

G04726475

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: All traces off old grease must be removed.

Detach gaiter from output shaft.
