27 21 030 Replacing radial shaft seal for output to the front axle (ATC 450)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completing work, check OIL LEVEL and top up if necessary.
Use only approved oil in this transfer box. See TRANSFER CASE - OPERATING FLUIDS .

Necessary preliminary tasks:

Remove FRONT PROPELLER SHAFT .

Remove protective cap (1) with a screwdriver.

Fig 1: Identifying Protective Cap

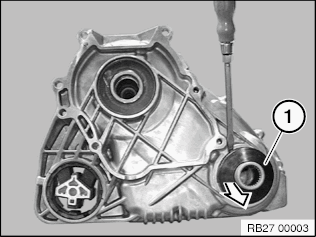

G00530613

Courtesy of BMW OF NORTH AMERICA, INC.

Drive a hole into radial shaft seal (1) using a center punch (2).

IMPORTANT: Do not use a drill as metal shavings from drilling may result in transmission malfunction.

Fig 2: Driving Hole Into Radial Shaft Seal Using Center Punch

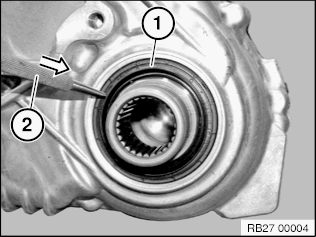

G00530614

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 23 0 490 (puller).

Drive out radial shaft seal (1) with impact weight (2).

Fig 3: Driving Out Radial Shaft Seal With Impact Weight

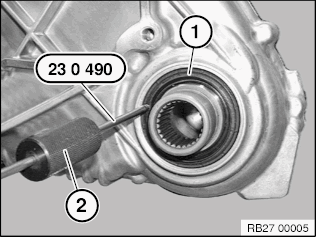

G00530615

Courtesy of BMW OF NORTH AMERICA, INC.

Drive in radial shaft seal with special tool 27 1 470.

Fig 4: Driving In Radial Shaft Seal With Special Tool 27 1 470

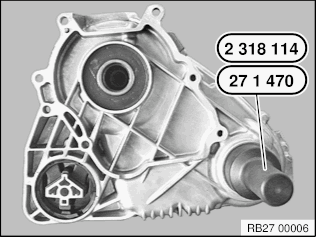

G00530616

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Check OIL LEVEL .

Check transmission for leaks.
