Adding transmission oil

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Stand vehicle on a level surface and secure against rolling off.

Undo oil filler plug (1).

Add automatic transmission fluid according to instructions in the BMW diagnosis system.

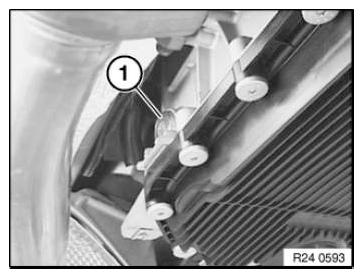

Fig 1: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring/oil filler plug

Tightening torque: 24 11 3AZ

Tighten down oil filler plug using

Hexagon socket wrench AF 8
Torque wrench
Socket AF 8

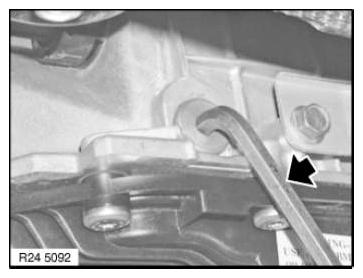

Fig 2: Tightening Oil Filler Plug Using Socket Wrench
Courtesy of BMW OF NORTH AMERICA, INC.
