24 31 564 Replacing torque converter radial shaft seal (GA8HP70Z) (X6 50i 2011-13)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT:

After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the approved transmission oil:

ATF oil Shell L12108* .............. BMW part number 83 22 2 152 426

* Can be substituted by the lifetime oil "ATF -3".............. BMW part number 83 22 2 305 397

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove TORQUE CONVERTER .

Secure transmission with special tool 24 0 200 on assembly stand 00 1 450.

NOTE: Read and comply with note on installation of TRANSMISSION RETAINING BRIDGE .

Fig 1: Pulling Out Radial Shaft Seal Using Special Tools (24 1 420 And 13 5 250)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out radial shaft seal (1) with special tools 24 1 420 and 13 5 250 (pullers).

Installation note:

Replace the O-ring on the drive shaft.

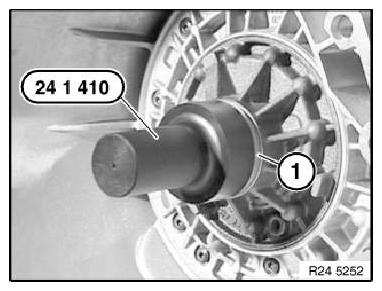

Fig 2: Driving Radial Shaft Seal Using Special Tool (24 2 410)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on radial shaft seal.

Drive in radial shaft seal (1) with special too l24 2 410 (adapter) as far as it will go.

Fig 3: Installing Radial Shaft Seal Using Special Tool (24 2 410)
