24 14 006 Replacing shaft seal for selector shaft (GA8HP70Z) (X6 50i 2011-13)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT:

After completion of repair work, check TRANSMISSION OIL LEVEL .

Use only the approved transmission oil:

ATF oil Shell L12108* .............. BMW part number 83 22 2 152 426

* Can be substituted by the lifetime oil "ATF -3".............. BMW part number 83 22 2 305 397

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

Remove MECHATRONICS
Remove EXHAUST SYSTEM
Remove heat shields
Remove FRONT PROPELLER SHAFT
Detach PROPELLER SHAFT CENTRE MOUNT
Detach TRANSMISSION CROSS MEMBER
Lower transmission using workshop jack

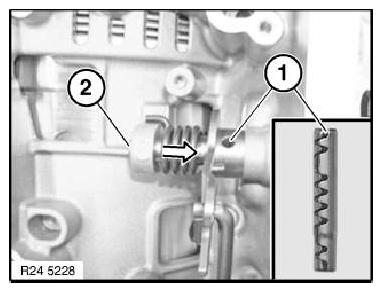

Using a suitable tool, drive clamping sleeve (1) out of selector shaft.

Withdraw selector shaft (2) outwards.

NOTE: Return spring is under tension.

Installation note:

Replace selector shaft (2).

Replace clamping sleeve (1).

Insert narrower end of clamping sleeve (1) into hole first. Using a suitable tool, drive in clamping sleeve until it is flush with the hole.

Fig 1: Driving Out Selector Shaft Clamping Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

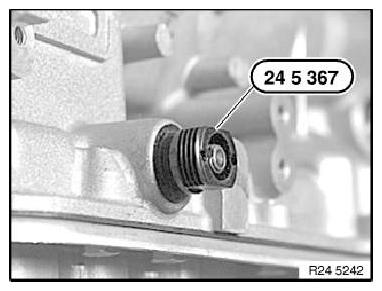

Screw in special tool 24 5 367 (puller) until it is firmly connected with radial shaft seal.

Fig 2: Connecting Radial Shaft Seal Using Special Tool (24 5 367)

Courtesy of BMW OF NORTH AMERICA, INC.

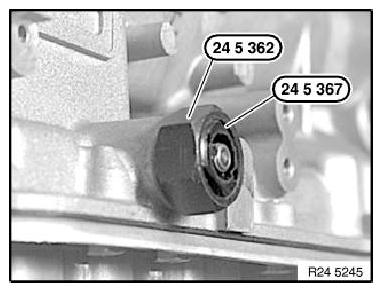

Screw special tool 24 5 362 (nut) onto special tool 24 5 367 (puller) and tighten down.

This pulls the shaft seal out of the transmission housing.

Fig 3: Tightening Special Tool (24 5 362) Onto Special Tool (24 5 367)

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal (1).

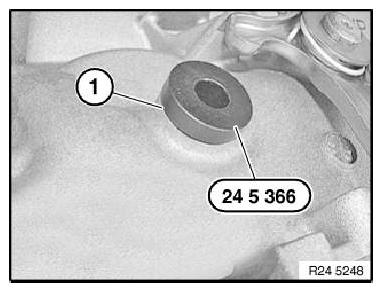

Drive radial shaft seal (1) fully home using special tool 24 5 366 (bush) and plastic hammer.

Fig 4: Driving Radial Shaft Seal Using Special Tool (24 5 366)

Courtesy of BMW OF NORTH AMERICA, INC.
