24 13 012 Replacing output flange radial shaft seal (GA8HP45Z) (X6 35i 2011-13)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved transmission oil:
ATF oil Shell L12108* .............. BMW part number 83 22 2 152 426
* Can be substituted by the lifetime oil "ATF -3".............. BMW part number 83 22 2 305 397
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary tasks:
- Remove transfer case. See "ATC 450" under TRANSFER BOX - REPAIR .
Drive a hole into radial shaft seal (1) using a center punch.
IMPORTANT:
Do not use a drill as drillings may result in transmission malfunction.

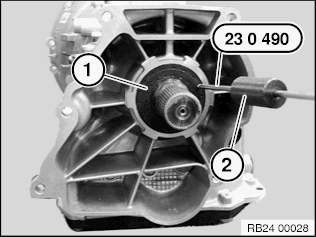

Thread special tool 23 0 490 (puller) into radial shaft seal (1).
Drive out radial shaft seal (1) with impact weight (2).
Installation note:
Coat sealing lips of new radial shaft seal with clean transmission oil.

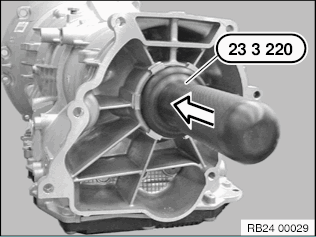

Drive shaft seal firmly home with special tool 23 3 220 (mandrel).
