22 32 001 Replacing rubber mount for transmission mounting (ATC 450)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove crossmember for transmission mounting. See 22 32 050 REPLACING CROSSMEMBER FOR TRANSMISSION MOUNTING .

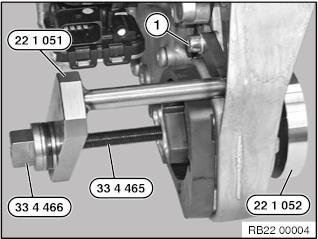

Attach special tool 22 1 051 with screw (1) on the housing. Pull out rubber mount with special tools 22 1 052 / 33 4 465 and 33 4 466.

Fig 1: Attach Special Tool 22 1 051 With Screw (1) On The Housing

Courtesy of BMW OF NORTH AMERICA, INC.

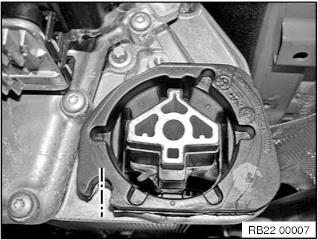

Installation note: Observe installation position of rubber mount. Arrow on rubber mount must point to arrow on housing. Coat housing bore and rubber mount with Circolight, refer to BMW Parts Service.

Fig 2: Observe Installation Position Of Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 22 1 102 with bolt into recesses of rubber mount.

Fig 3: Insert Special Tool 22 1 102 With Bolt Into Recesses Of Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

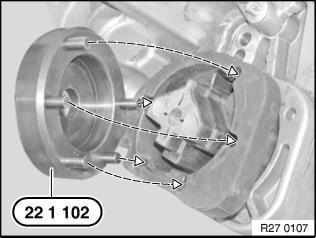

Draw in rubber mount with special tools 22 1 102 / 22 1 053 / 33 4 465 and 33 4 466.

Fig 4: Draw In Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
