3. Crimping contact sleeves for fan connectors 4 mm2 and ignition cable contacts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tool kit 12 1 080 is used to fit ignition cable contacts and to crimp 4 mm² contact sleeves for fan connectors.

12 1 081 (hand crimping tool)
12 1 083 (matrix)

Fig 1: Identifying Hand Crimping Tool And Matrix

G06213332

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock special tool 12 1 081 :

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

Or:

Compress handles as far as they will go, tool unlocks automatically.

Fig 2: Identifying Squeeze Grips And Unlocking Lever

G06213333

Courtesy of BMW OF NORTH AMERICA, INC.

Insert contact sleeve 4 mm² in nest with lock (1) as far as it will go.

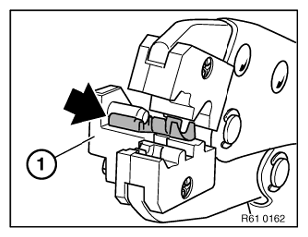

Fig 3: Inserting Contact Sleeve With Lock

G06213334

Courtesy of BMW OF NORTH AMERICA, INC.

Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.

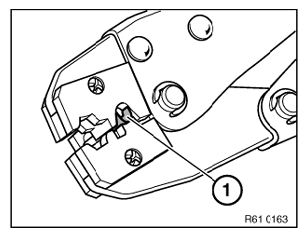

Fig 4: Grip Contact Firmly

G06213335

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables.

Insert stripped end of wire (7) in the contact. Ensure insulation and stripped wire end are correctly laid in contact.

Compress crimping tool as far as it will go.

Crimping tool unlocks automatically.

Take contact out of crimping tool.

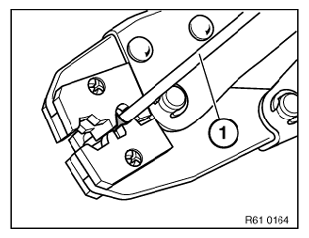

Fig 5: Inserting Stripped End Of Wire

G06213336

Courtesy of BMW OF NORTH AMERICA, INC.
