Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console storage compartment. See CENTER CONSOLE. Remove lower section of steering column trim. See LOWER SECTION OF STEERING COLUMN TRIM .

Release screw (1) and remove trim. See Fig 1 .

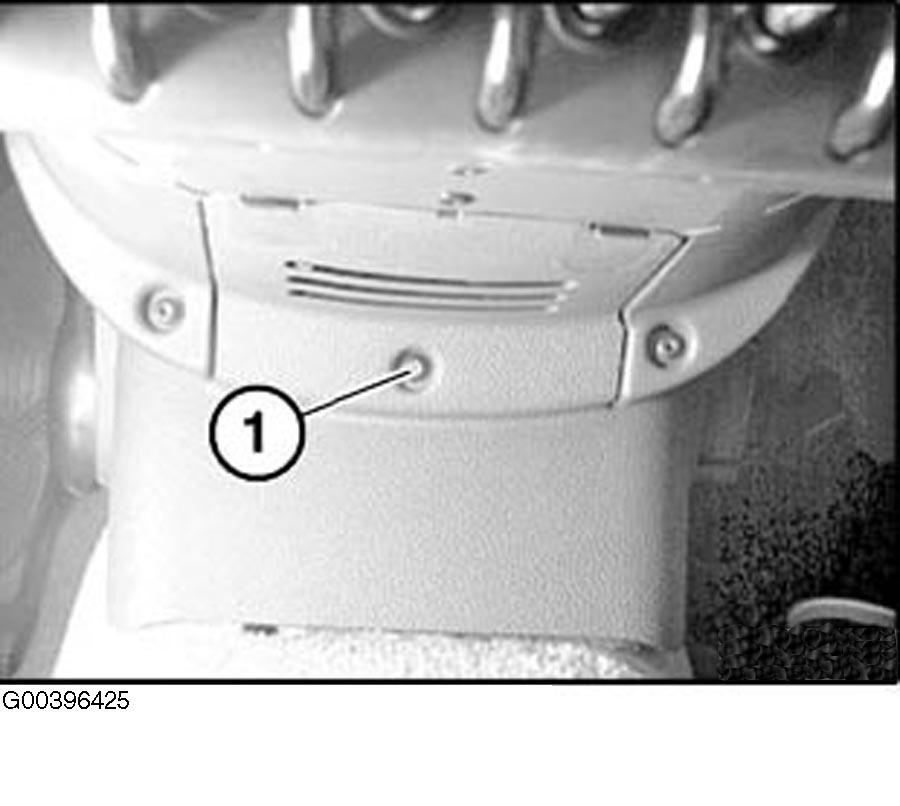

Fig 1: Releasing Screw & Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and disconnect cable on interlock. See Fig 2 .

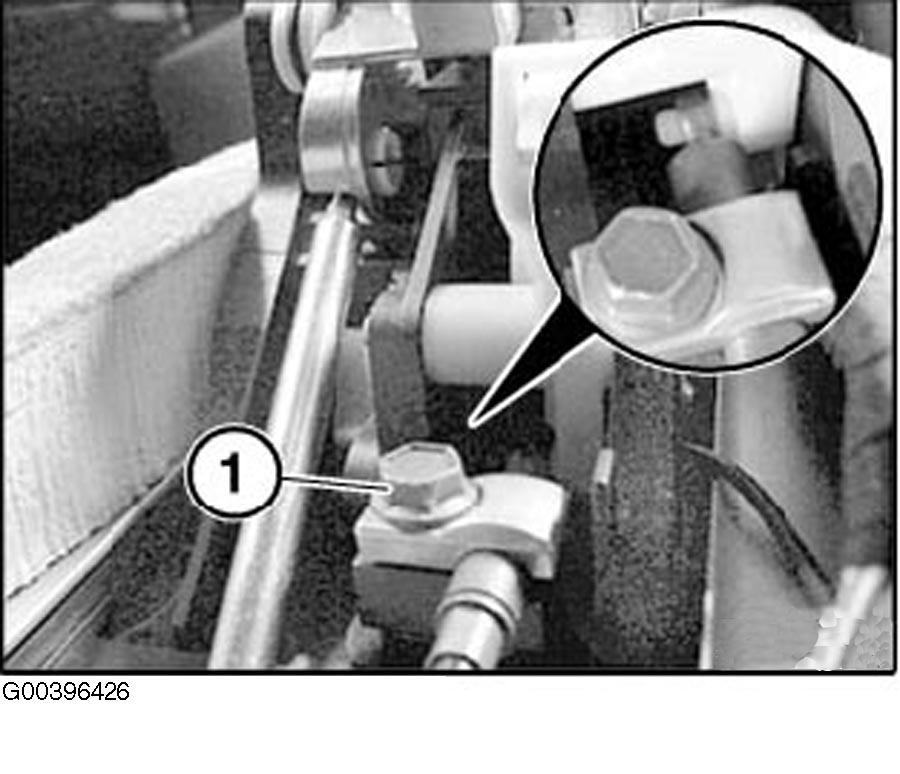

Fig 2: Disconnecting Cable On Interlock

Courtesy of BMW OF NORTH AMERICA, INC.

Release retaining tab and remove cable from ignition switch by turning. See Fig 3 .

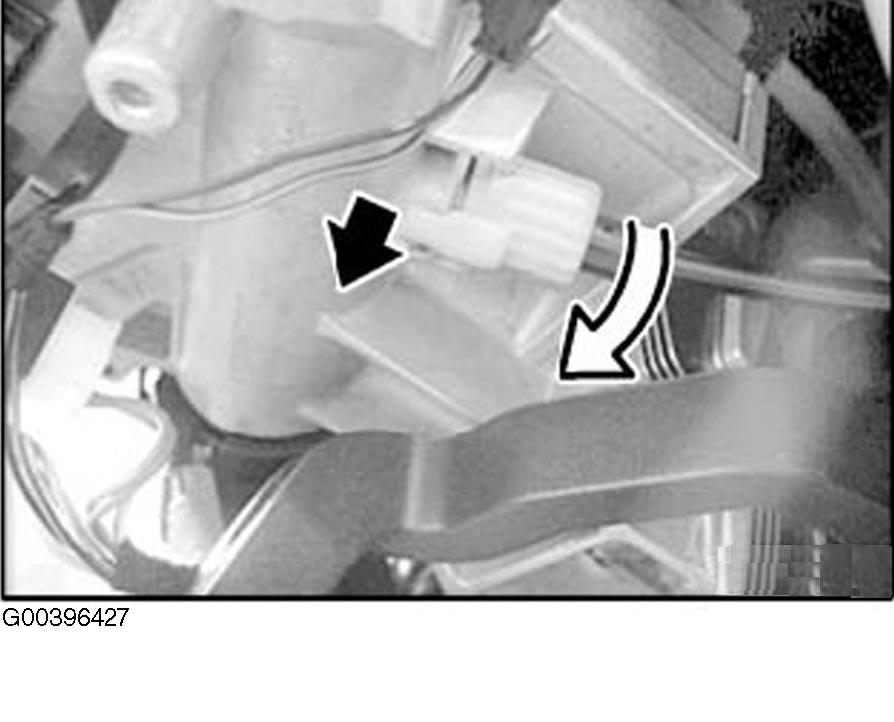

Fig 3: Releasing Retaining Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect cable from trim lug and remove. See Fig 4 . After completing tasks, adjust cable. See INTERLOCK CABLE under ADJUSTMENTS.

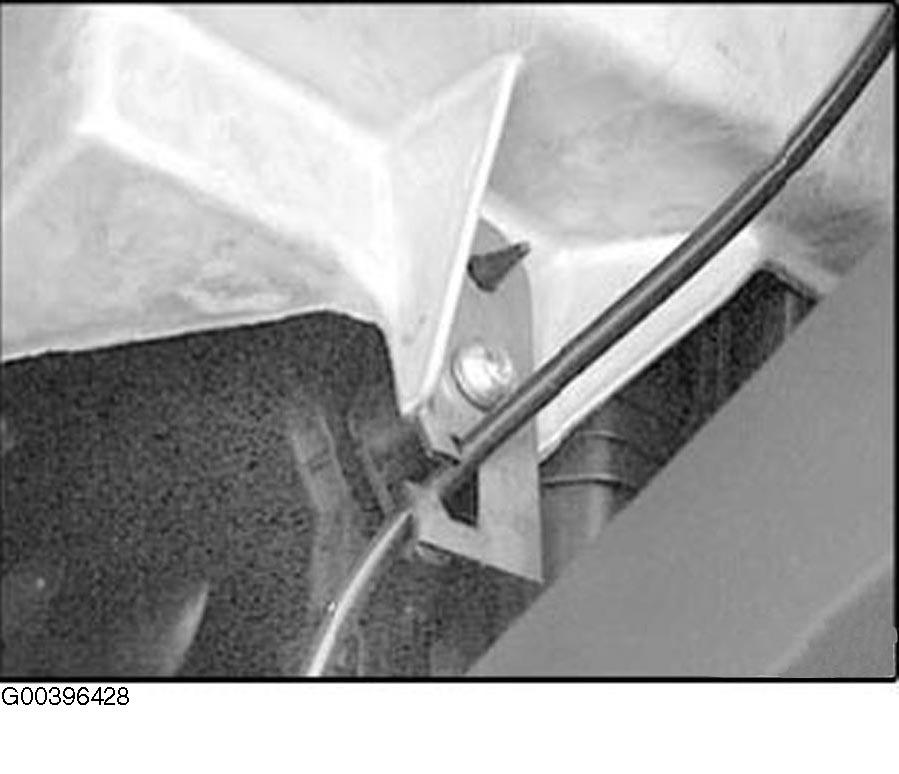

Fig 4: Disconnecting Cable From Trim Lug

Courtesy of BMW OF NORTH AMERICA, INC.
