Removal & Installation (Standard Steering Wheel)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

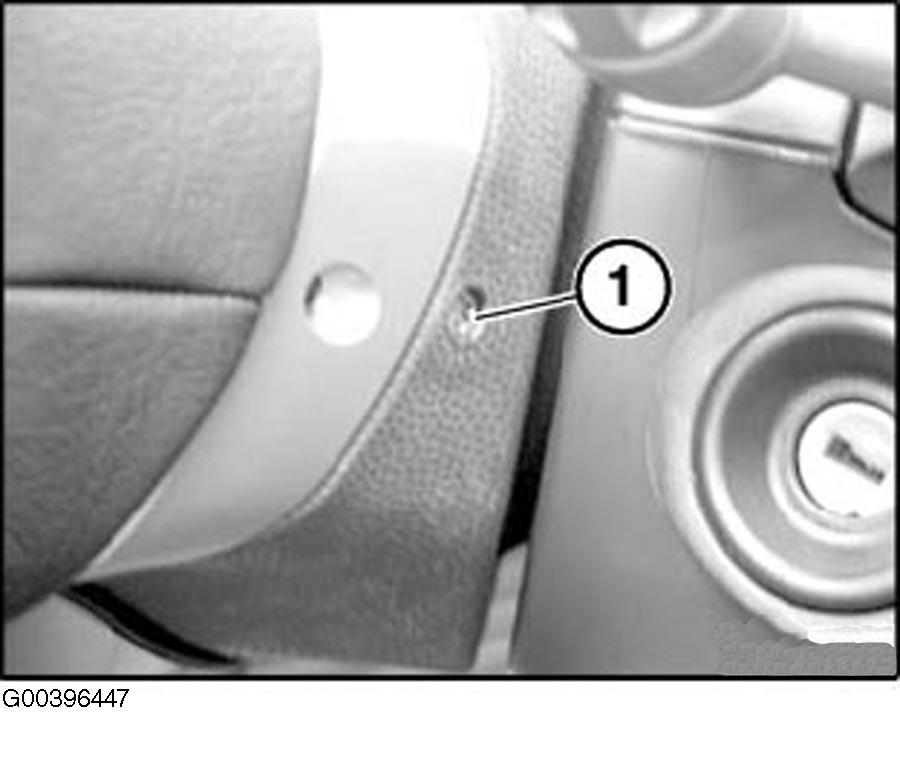

Comply with safety regulations. Improper handling may trigger the airbag and thus cause serious injury. Disconnect battery and cover negative pole on terminal. Release screws with Torx heads (1) on left and right. See Fig 1 . During installation, tighten screws to specification. Do not pinch wires. Screws remain on the steering wheel without being lost.

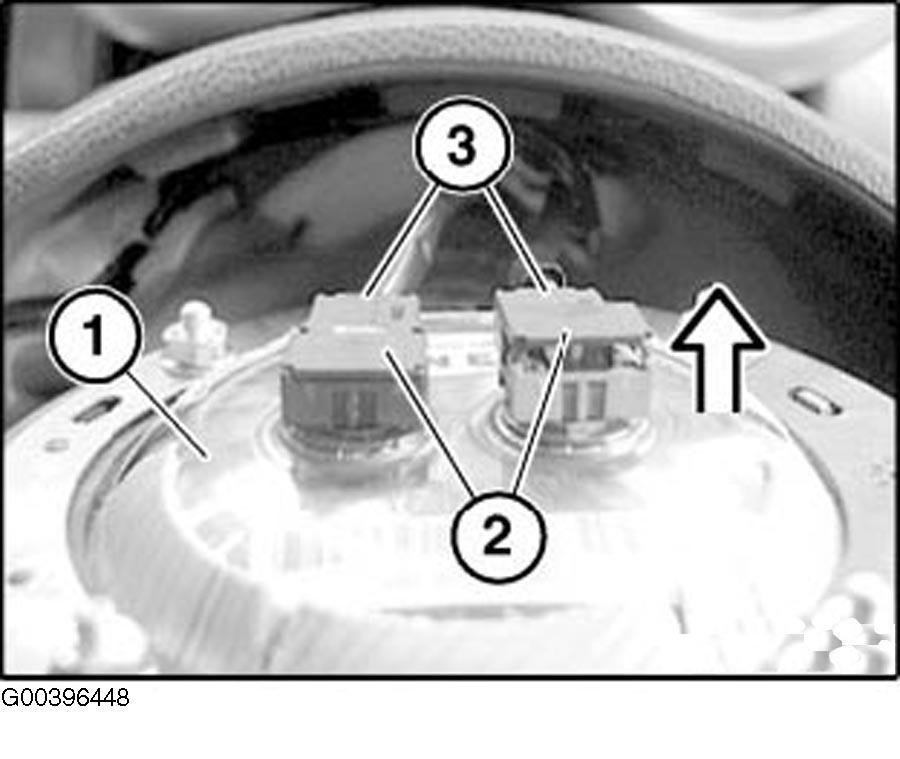

Remove airbag module (1) from steering wheel. Release locking elements (2) of connectors and unplug connectors (3). Remove airbag. Lay airbag unit with impact pad facing upwards (luggage compartment) only.
