65 81 060 Removing and installing/replacing outside temperature sensor (M3)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1 and 2).

Remove tip of engine compartment shield (3) on left/right.

Installation:

Make sure tip of engine compartment shield (3) is installed in correct position.

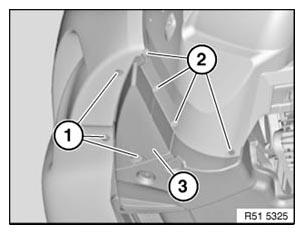

Fig 1: Identifying Engine Compartment Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip outside temperature sensor (2) in direction of arrow and remove.

Installation:

Outside temperature sensor (2) must audibly snap into place.

Ensure correct seating in air duct (3).

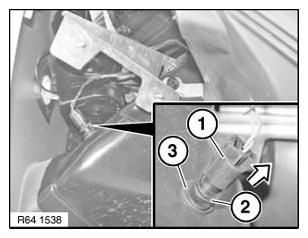

Fig 2: Identifying Outside Temperature Sensor And Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.
