65 77 720 Removing and installing (replacing) left B-pillar sensor (Convertible)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) . See61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

WARNING: Note airbag safety instructions!
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect battery negative lead and cover. See 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Remove rear side trim panel . See 51 43 034 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT LOWER SIDE TRIM SECTION .

Release screw (2) and disconnect plug connection (2). Tightening torque 65 77 5AZ, see 65 77 AIRBAG TRIGGERING CONTROL .

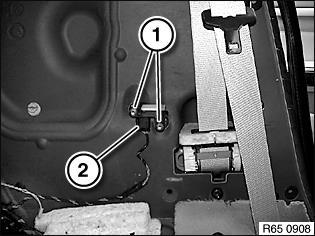

Fig 1: Release Screw (2) And Disconnect Plug Connection (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Establish correct positioning of B-pillar sensor (1) by means of guide pin (2) and screw (3).

Fig 2: Establish Correct Positioning Of B-Pillar Sensor (1) By Means Of Guide Pin (2) And Screw (3)

Courtesy of BMW OF NORTH AMERICA, INC.
