Section 2268 (Airbag, Audio, Navigation, Anti-Theft, Restraint - Repair - E92/93)
>>
Airbag triggering unit
>>
65 77 ... Overview of sensors for airbag system
65 77 ... Overview of sensors for airbag system
WARNING:
This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

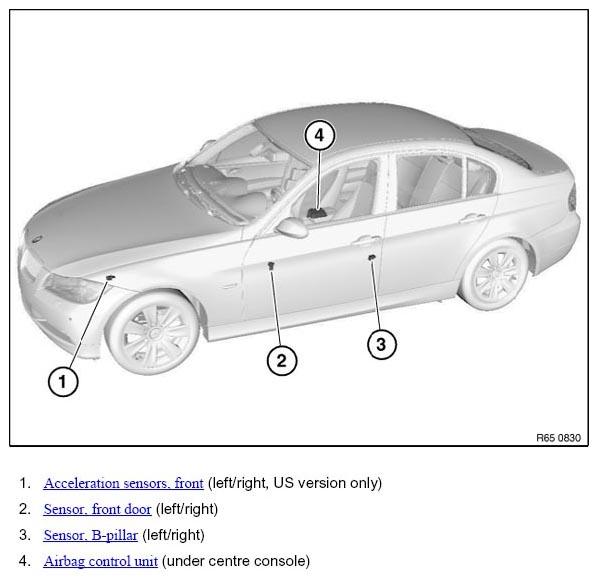

Fig 1: Identifying Airbag System Locations
Courtesy of BMW OF NORTH AMERICA, INC.
