65 20 140 Removing and installing/replacing left antenna (AM/FM)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks: Remove upper section of side trim panel. See 51 43 012 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT UPPER SIDE TRIM SECTION .

Release retaining rings (1) and remove sound insulation (2).

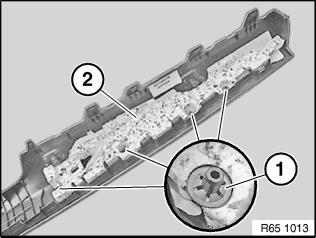

Fig 1: Release Retaining Rings (1) And Remove Sound Insulation (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Important! Antenna (1) must not be kinked. Remove antenna (1).

Fig 2: Remove Antenna (1)

Courtesy of BMW OF NORTH AMERICA, INC.
