65 20 130 Removing and installing/replacing left antenna amplifier
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks: Remove upper section of side trim panel. See 51 43 012 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT UPPER SIDE TRIM SECTION .

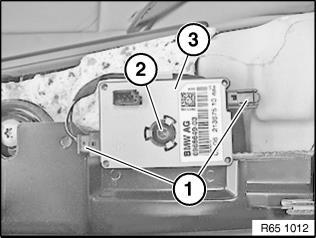

Disconnect plug connections (1) and feed out cable. Release screw (2). Remove antenna amplifier (3).
