64 11 806 Removing and installing/replacing servodrive for fresh-/recirculated-air flap
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors
Necessary preliminary tasks:
- Remove right glovebox with housing . See 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING .

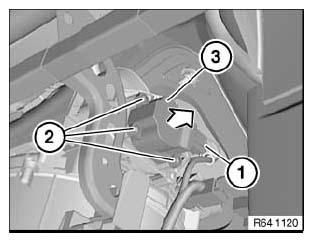

Unfasten plug connection (1) and disconnect.
Release screws (2).
Detach servodrive for fresh-/recirculated-air flap (3) in direction of arrow from heater/air conditioner.
Installation:
Place servodrive for fresh-/recirculated-air flap (3) exactly on associated gear teeth.
