63 99 145 Replacing bulb for front left (or right) side lights

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (exterior lights ).

Unlock catches (1) and remove cover (2) in direction of arrow from headlight.

Installation:

Make sure cover (2) is correctly seated on headlight.

Fig 1: Removing Cover From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Headlight removed for purposes of clarity.

Disconnect plug connection (1).

Grip bulb for side lights (2) on both sides, turn in direction of arrow and pull out of headlight.

Installation:

Make sure bulb for side lights (2) is exactly seated in headlight.

Note type of bulb .

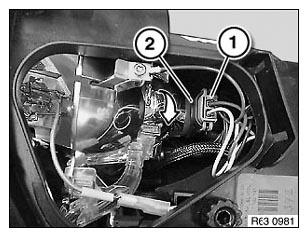

Fig 2: Identifying Plug Connection And Side Light

Courtesy of BMW OF NORTH AMERICA, INC.
