63 31 080 Removing and installing/replacing luggage compartment light

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for handling light bulbs ( interior lights ).

Lever out luggage compartment light (1) in direction of arrow.

Disconnect associated plug connection and remove luggage compartment light (1).

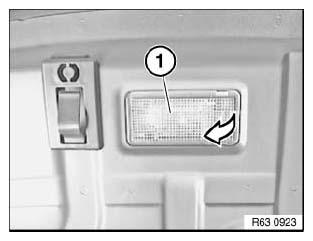

Fig 1: Removing Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulbs.
Note bulb type .
