63 14 060 Removing and installing/replacing front left or right side marker (M3/US)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020
See HEATING AND AIR CONDITIONING - SPECIAL TOOLS .
IMPORTANT:
Risk of damage!
Carry out the following operation carefully so as to avoid damaging the bumper trim and side marker.
Carry out the following operation carefully so as to avoid damaging the bumper trim and side marker.

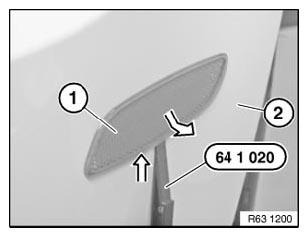

Press side marker (1) upwards with special tool 64 1 020 and feed in direction of arrow out of bumper trim (2).
Installation:
Retaining spring of side marker (1) must not be damaged or missing.
Make sure side marker (1) is correctly seated in bumper trim (2).
