54 12 117 Replacing seal for glass slide/tilt sunroof lid

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glass slide/tilt sunroof lid

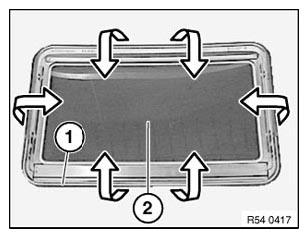

Detach seal (1) from glass slide/tilt sunroof lid (2).

Fig 1: Detaching Seal From Glass Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

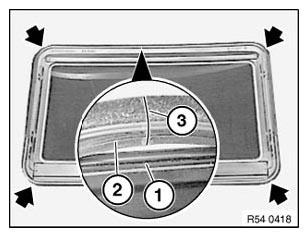

Coat guide channel (1) and seal (2) with soapy water.

Begin installation at rear middle, with sealing joint (3).

Do not pull seal too tightly in radii (leakage).

Fig 2: Identifying Guide Channel, Seal And Sealing Joint With Soapy Water

Courtesy of BMW OF NORTH AMERICA, INC.
