54 12 003 Adjusting glass slide/tilt sunroof lid

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 315
00 9 341

Necessary preliminary tasks:

Remove gaiter

Ideal adjustment:

Distance:
- Distance A from glass slide/tilt sunroof lid (1) to roof (2) must be the same all round
- A = all round 6.0 ± 0.5 mm
Height:
- Front - flush to 0.75 mm deeper
- Rear - flush to 1.5 mm higher

Loosen left and right bolts (1).

Fig 1: Identifying Distance A From Glass Slide/Tilt Sunroof Lid And Roof

Courtesy of BMW OF NORTH AMERICA, INC.

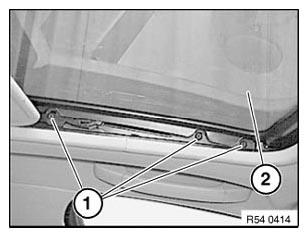

NOTE: To adjust, slacken screws (1) on left/right so that glass slide/tilt sunroof lid (2) can still just be adjusted.

Tightening torque: 54 12 01AZ .

Fig 2: Identifying Screws And Glass Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Height adjustment:

Check height of glass slide/tilt sunroof lid (1) to roof (2) with special tool 00 9 315 .

Push glass slide/tilt sunroof lid upwards or downwards until ideal setting is reached.

Distance adjustment:

Check distance between seal and roof (2) with special tool 00 9 341.

It must be possible to slide the special tool against the same level of resistance.

Slide glass slide/tilt sunroof lid towards front/rear until ideal position is obtained.

Fig 3: Checking Distance Between Seal And Roof With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Check function and adjustment.

Initialize glass slide/tilt sunroof.
