52 24 408 Replacing backrest cover for rear seat

Special tools required:

• 52 0 050

See SEATS - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove backrest
• If necessary, remove center armrest
• Remove all guide sleeves

Specification with center armrest:

Unclip cover towards front.

Installation:

If necessary, replace faulty clips.

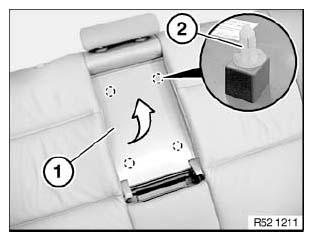

Fig 1: Unclipping Cover Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover (1) in marked area from backrest frame.

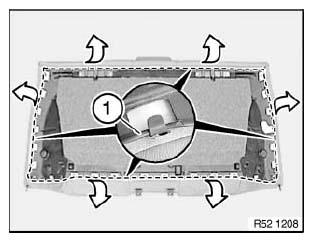

Fig 2: Detaching Backrest Cover In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from backrest cover in marked area from backrest frame.

Release all retainers in area of left and right guides.

Installation:

Insert new retainer (2) with special tool 52 0 050  and bend closed.

Remove backrest cover with padding from backrest frame.

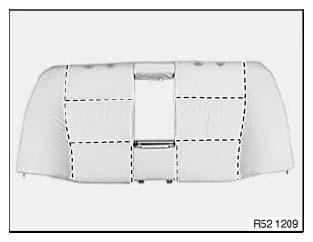

Fig 3: Detaching Welt From Backrest Cover In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover from padding:

• Release all retainers in marked area.
• Remove cover from padding.
• Remove remaining retainers from cover and padding.

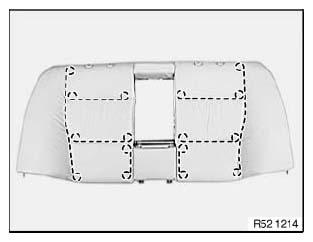

Fig 4: Identifying Retainers In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050  and bend closed.

1. Support
2. Retainer
3. Trim thread in support
4. Trim wire in backrest cover
5. Back-rest cover

Fig 5: Inserting Retainer With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Remove all trim wires from cover
• If necessary, cut pockets in new cover for trim wires
• Push trim wires into pockets

Fig 6: Identifying Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.
