52 13 390 Removing and installing or replacing front left or right head restraint

WARNING: This page is about a different car, the 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Press catch (1) and lift out head restraint (2).

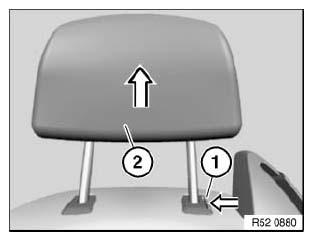

Fig 1: Lifting Out Head Restraint

Courtesy of BMW OF NORTH AMERICA, INC.
