51 13 047 Removing and installing (replacing) grille on side panel at front left or right

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

See HEATING AND AIR CONDITIONING - SPECIAL TOOLS .

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Unlock catches (1) under side panel grille (2) with special tool .

Unclip side panel grille (2) in direction of arrow from front side panel (3) and remove against direction of travel.

Disconnect plug connection (4).

Installation:

Make sure side panel grille (2) is correctly seated on front side panel (3).

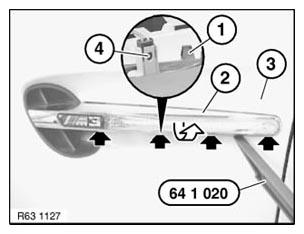

Fig 1: Unlocking Catches Under Side Panel Grille With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on side panel grille (2) must not be damaged.

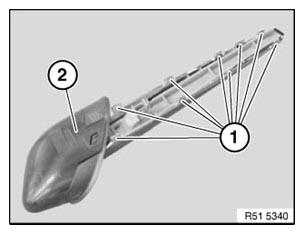

Fig 2: Identifying Catches And Side Panel Grille

Courtesy of BMW OF NORTH AMERICA, INC.
