51 13 025 Removing and installing/replacing left or right trim on engine hood/bonnet

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove trim (2) in upwards direction.

Tightening torque 51 13 7AZ , see 51 13 TRIM PARTS, COVERS, HANDLE TRIM .

Fig 1: Identifying Screws And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) on trim (2) must not be damaged.

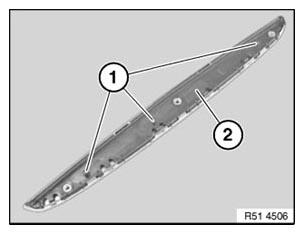

Fig 2: Identifying Guides And Trim

Courtesy of BMW OF NORTH AMERICA, INC.
