51 43 034 Removing and installing/replacing rear left or right lower side trim section: Notes

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove side trim upper section
Remove decorative strip from side trim panel
Remove rear seat . See 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .

Release screws (1).

Release lower side trim section (2) at clips (3).

Feed lower side trim section (2) out of entrance cover strip (4).

Disconnect all associated plug connections/cable holders and remove lower side trim section (2) in inward direction.

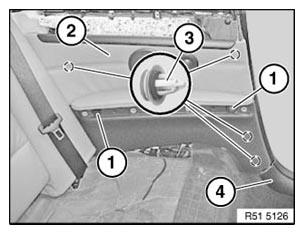

Fig 1: Identifying Lower Side Trim Section Of Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1 and 2).

Fit all clips (1) with sealing ring.

Make sure clips (1 and 2) are in correct installation position.

White clip
Blue clip

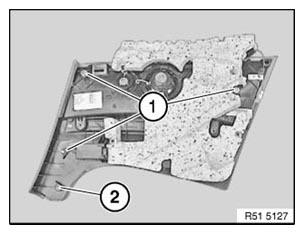

Fig 2: Identifying Sealing Ring Clips
Courtesy of BMW OF NORTH AMERICA, INC.
