51 61 017 Removing and installing/replacing diagonal strut, front end, left
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Scalding hazard!
Only perform work after engine has cooled down.
Only perform work after engine has cooled down.
IMPORTANT:
Observe safety instructions
for raising the vehicle
Driving without the diagonal strut is not permitted! See 00 ... ... LIFTING VEHICLE WITH A LIFTING PLATFORM .
Driving without the diagonal strut is not permitted! See 00 ... ... LIFTING VEHICLE WITH A LIFTING PLATFORM .
Necessary preliminary tasks:
- Remove front underbody protection
- If necessary, remove radiator seal
- N51, N52, N53: Remove intake filter housing
IMPORTANT:
Diagonal strut on right side must be installed in direction of travel ahead of diagonal strut on left side.

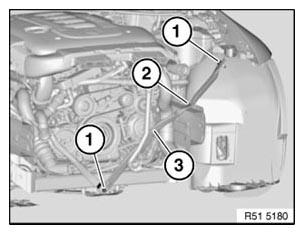

Release screws (1) and nuts (2).
Feed out diagonal strut (3) towards top.
Installation:
Replace screws.
Replace self-locking nut.
Tightening torque 51 71 11AZ , see 51 71 SEALS AND LOOSE BODY PARTS .
