51 22 126 Removing and installing/replacing carrier for outside door handle on left or right rear door

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove outside handle .
Remove sound insulation .
E90 and E91 only:
Remove door lock .

E87 only:

Release Bowden cable (1) from door lock (2).

Installation:

Bowden cable (1) must be correctly engaged in locators in door lock (2).

Bowden cable (1) must be laid without kinks in bend to door lock (2).

IMPORTANT: Door cannot be opened if Bowden cable (1) is incorrectly laid.

Fig 1: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

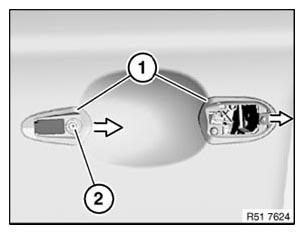

Remove seals (1) in direction of arrow.

Release screw (2).

Fig 2: Identifying Seals And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove inner carrier (1) in direction of arrow.

Fig 3: Identifying Inner Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, release cable strap (1).

Feed Bowden cable (2) out of carrier (3).

Fig 4: Identifying Bowden Cable And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
