51 16 340 Removing and installing/replacing lock for right glovebox

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Open glovebox.

Release screws (1).

Remove lower section (3) and upper section (2) of lock.

Fig 1: Identifying Lower Section And Upper Section Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Insert ignition key (1) in lock cylinder (3).

Turn ignition key (1) slightly, carefully raise catches (2) and pull out lock cylinder (3) with ignition key (1) in direction of arrow.

If necessary, force catches (2) open.

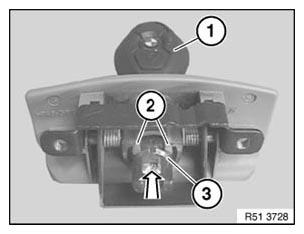

Fig 2: Identifying Ignition Key, Raise Catches And Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
