51 16 200 Removing and installing storage compartment

Special tools required:

• 00 9 323

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove trim for storage tray

Lever out covers (1) and release screws underneath.

Fig 1: Identifying Screw Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Move with special tool 00 9 323  from below behind trim (1) and release catches (2).

Release trim (1) towards rear from catches (3).

If necessary, disconnect plug connections and remove trim (1).

Fig 2: Identifying Trim And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 3) must not be damaged.

Guides (2) must not be damaged.

Fig 3: Identifying Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Depending on equipment specification:

If necessary, disconnect cable strap (2) and plug connections (3 and 4).

Fig 4: Identifying Cable Strap And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off gaiter (1) towards top.

Specification with telephone:

Detach plug connection (2) from holder and disconnect plug connection (2).

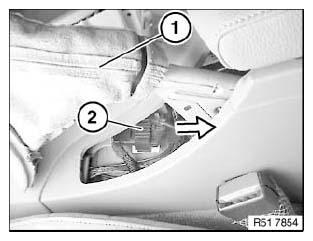

Fig 5: Identifying Gaiter And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Raise storage compartment (2) at rear and feed out gaiter (1) through opening.

If necessary, disconnect further plug connections and feed out cable.

Remove storage compartment (2) towards rear/top.

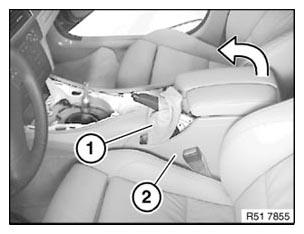

Fig 6: Identifying Storage Compartment And Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide (1) of storage compartment (2) must be fed behind panel (4) on left/right.

Specification with ventilated multifunction storage:

Air duct (3) must be correctly inserted in storage compartment (2).

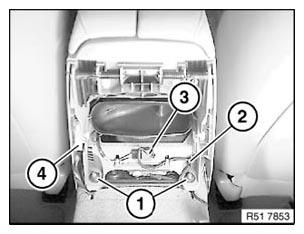

Fig 7: Identifying Air Duct And Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
