51 16 154 Removing and installing/replacing insert for center console

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for storage compartment

Remove foam material (1).

Release screws (2) and remove insert/ashtray (3).

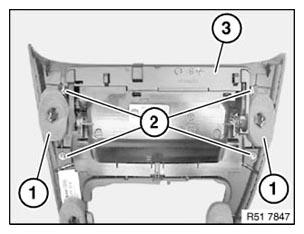

Fig 1: Identifying Foam Material, Screws And Insert/Ashtray

Courtesy of BMW OF NORTH AMERICA, INC.
