51 16 026 Replacing mirror glass
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317
See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
WARNING:
Risk of injury!
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Risk of injury by flaking-off glass splinters.
Move mirror glass with hand carefully and slowly.
If mirror glass is damaged:
Wear protective goggles and cut-proof gloves.
Risk of injury by flaking-off glass splinters.
IMPORTANT:
Risk of damage!
Bring door mirror to room temperature to prevent catches from breaking off.
Bring door mirror to room temperature to prevent catches from breaking off.
IMPORTANT:
Risk of damage!
Secure mirror glass (1) against falling out.
Secure mirror glass (1) against falling out.

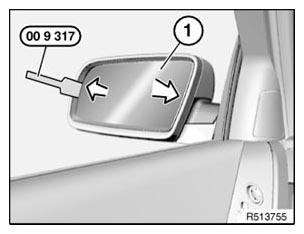

Press mirror glass (1) on side vehicle by hand to full extent.
Unclip mirror glass (1) from outer side with special tool 00 9 317 all round.
Unlock and disconnect associated plug connections, remove mirror glass (1).
Installation:
Retaining lugs (1) must not be damaged.
Fit mirror glass (2) with retaining lugs (1) flush on mirror adjusting drive and clip into place.
Ensure correct locking.
Make sure mirror adjusting drive functions correctly.
