51 16 ... Removing and installing/replacing trim on left or right door mirror

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cover cap from door mirror

Release screws (1) and carefully remove trim (2) towards front.

Installation:

Make sure trim (2) is correctly seated on door mirror.

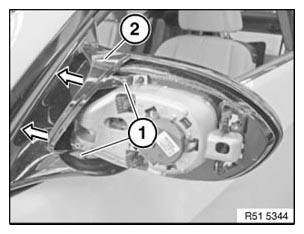

Fig 1: Identifying Screws And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holders (1) and guide (2) must not be damaged.

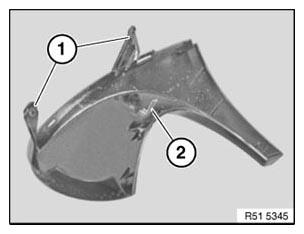

Fig 2: Identifying Holders And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
