51 41 000 Removing and installing left or right front door trim panel (convertible/coupe)

Special tools required:

• 00 9 317

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove decorative strip from door trim panel.

Driver's side:

• Remove rocker switch for side window operation  . See 61 31 115 REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (FRONT) .

Passenger side:

• Remove cover on door handle  .

Driver's side only:

Release screws (1).

Tightening torque 51 41 1AZ, see 51 41 FRONT DOOR TRIM PANEL WITH ARMRESTS .

Fig 1: Identifying Driver's Side Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side only:

Release screws (1).

Tightening torque 51 41 1AZ, see 51 41 FRONT DOOR TRIM PANEL WITH ARMRESTS .

Fig 2: Identifying Passenger Side Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (2) for door trim panel (1) with special tool 00 9 317 .

Fig 3: Identifying Door Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

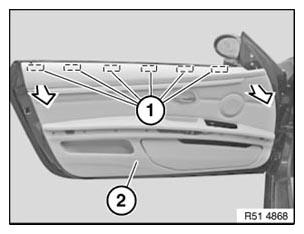

Carefully unclip door trim panel (2) at top from retainers (1).

Fig 4: Identifying Door Trim Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections/cable holders and remove door trim panel.

Fig 5: Identifying Door Lock And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

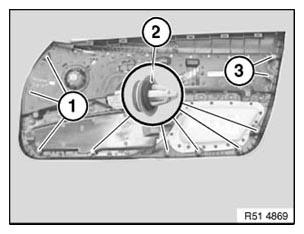

If necessary, replace faulty clips.

Fit all clips with sealing ring.

Make sure clips are installed in correct position.

1. Grey clip
2. White clip
3. Red clip
   Fig 6: Identifying Sealing Ring And Clips

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

• Open door window.
• Lock with vehicle key.
• Check for ease-of-movement on retaining button linkage
• If necessary, align linkages
