51 21 301 Removing and installing/replacing window cavity cover strip on outside of front door
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 322
See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .
IMPORTANT:
The Instructions on fitting window guide seals serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Remove mirror on front door .

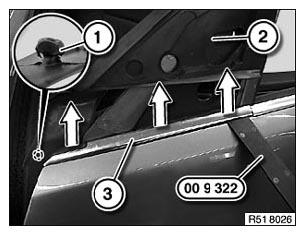

Pop catch (1) out of window guide (2) of door.
Pull window guide (2) approx. 30 mm upwards.
Carefully lever window cavity cover strip (3) with special tool 00 9 322 out of door.
Installation:
Catch (1) must not be damaged.
Moisten window cavity cover strip (3) prior to fitting with approved anti-friction agent .
Window cavity cover strip (3) must be flush at front to door.
