51 11 ... Installing/replacing number/license plate (without base)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Initial fitting:

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to number/license plate.

Remove template (1) and secure number/license plate with screws provided.

Tightening torque 51 11 3AZ , see 51 11 FRONT BUMPER .

Fit protective caps.

Fig 1: Placing Drilling Hole Template On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Place drilling hole template (1) on radiator grille (2) and bumper (3).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to number/license plate.

Remove template (1) and secure number/license plate with screws provided.

Tightening torque 51 11 3AZ , see 51 11 FRONT BUMPER ..

Fit protective caps.

Fig 2: Placing Drilling Hole Template On Radiator Grille And Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Repairing thread:

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1)*.

Secure number/license plate (3) with number/license plate screw (4)*.

Tightening torque 51 11 4AZ , see 51 11 FRONT BUMPER ..

NOTE: * Sourcing reference: BMW Parts Service

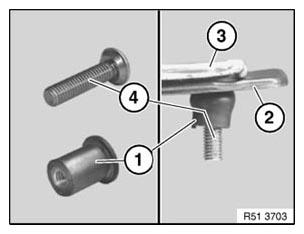

Fig 3: Identifying Blind Rivet Nut, Number/License Plate And Screw
