51 47 312 Replacing footrest for front passenger compartment

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panel for pedal assembly

NOTE: Footrest is either bonded to carpet or secured with retaining rings from rear to carpet.

Attachments with retaining rings are drilled out
Bonded footrest is detached with a hot air blower

The attachment points must always be drilled out first.

Place drilling hole template (1) on footrest (2) and align to outer edge of footrest (2).

Mark bore holes with punch and remove drilling hole template (1).

Drill out attachment points.

Predrill to 3 mm dia.
Drill out to 10 mm dia.

NOTE: If the footrest (2) is not bonded, it can be removed now. Continue with the next work step but one.

Fig 1: Identifying Footrest

Courtesy of BMW OF NORTH AMERICA, INC.

Bonded footrest only:

NOTE: Adhesive bead must remain on carpet (risk of damage).
Heat footrest (1) with hot air blower and thereby release adhesive bead from footrest (1).
If necessary, pull off footrest (1) in inward direction.

Fig 2: Identifying Footrest

Courtesy of BMW OF NORTH AMERICA, INC.

Only when fitting retaining rings:

Remove left footwell side trim panel.

Drive through pins (1).

Fold carpet (2) inwards slightly and remove pins (1).

Fig 3: Identifying Carpet And Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

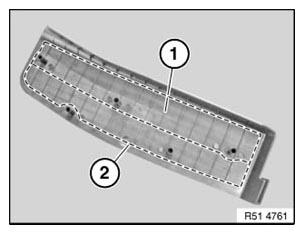

Heat footrest (1) with hot air blower and apply adhesive bead along dashed line (2) with hot-melt adhesive gun.

Place footrest (1) on carpet and stick on.

Press footrest (1) down until adhesive bead has cooled down.

Fig 4: Identifying Footrest

Courtesy of BMW OF NORTH AMERICA, INC.
