51 47 207 Removing and installing/replacing panel for main bearing on left or right

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, close lowerable hardtop.

Slide luggage compartment cover until panel (1) is easily accessible.

Release panel (1) in upward direction from retainers (2) and catches (3).

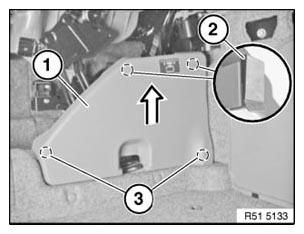

Fig 1: Identifying Panel In Upward Direction From Retainers And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of trim (1) must not be damaged or missing:

(2) Clips
(3) Guides
(4) Catch
(5) Retainer

Make sure panel (1) is correctly seated on all retaining elements.

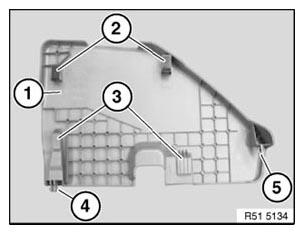

Fig 2: Identifying Clips, Guides, Catch And Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
