51 47 202 Removing and installing cover for luggage compartment

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Open lid for lowerable hardtop.

If necessary, extend lowerable hardtop.

Raise cover (1) slightly.

Release screws (2) and remove cover (1).

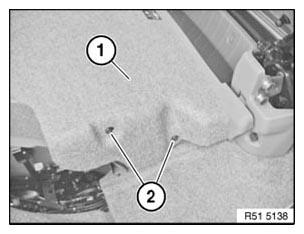

Fig 1: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cover (1) must fit correctly into locators (2) on left and right.

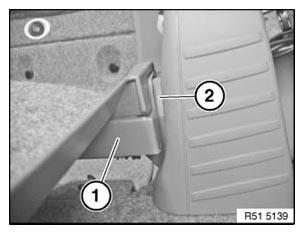

Fig 2: Installing Cover In Locators

Courtesy of BMW OF NORTH AMERICA, INC.
