41 11 300 Cover For Longitudinal Member With Left Door Pillar Replacement (Partial Replacement B-Pillar)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved spot-welding apparatus for repairs.

Place vehicle on straightening bench.

(1) B-pillar with entrance
(2) Shaped part, B-pillar, inner (not shown)

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

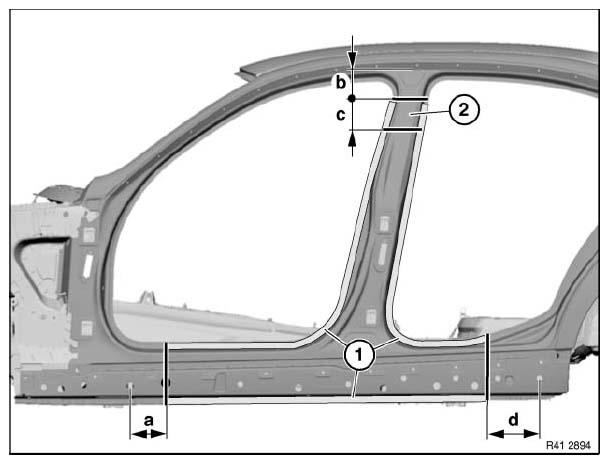

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

Measurement a = approx. 128 mm behind hole dia. 25 mm.

Measurement b = approx. 100 mm from roof edge.

Measurement c = approx. 80 mm below cut b.

Measurement d = approx. 190 mm from center point of hole dia. 20 mm.

Open weld joints in areas (1).

Installation:

Cut out metal section (2) is needed again for sealing.

Weld in reinforcing panels at all severance cuts.

Mark severance cut in accordance with specified measurement and cut.

IMPORTANT: Cut outer metal plate only for following severance cut.

Measurement a = 140 mm from roof edge.

Installation:

Weld in reinforcement plate at severance cut.

Fig 1: Cut Mark Area

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: View from inside

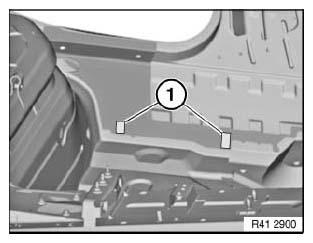

Open weld joints in areas (1).

Fig 2: Weld Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: View from inside

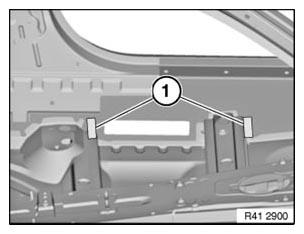

Open adhesive bonds in areas (1).

Fig 3: Adhesive Bonds Area

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: View from below
Open weld joint in area (1).

Fig 4: Weld Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Weld Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation information:

Mark new part in accordance with severance cuts on vehicle and cut.

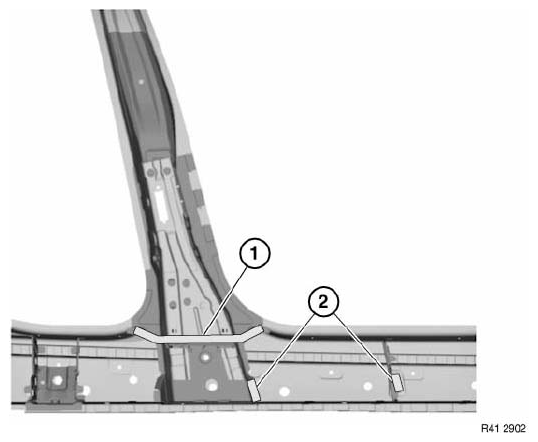

Apply window glass adhesive to cavity acoustic baffle (1).

Apply adhesive in areas (2).

Adjust new part to fit with straightening attachment or universal mount.
