41 34 041 Tail Panel Complete Replacement

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Use only approved spot-welding apparatus for repairs.

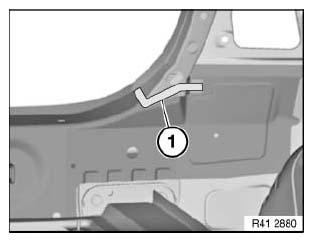

(1) Rear trim

Fig 1: Rear Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Open brazed joints in areas (2).

Fig 2: Weld Joints Area And Brazed Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Fig 3: Weld Joint Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints in areas (1).

Remove reinforcements (2).

NOTE: This work step is omitted if the rear side panels are replaced at the same time.

Fig 4: Weld Joint Areas And Reinforcements

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide in rear trim (1) from bottom upwards.

Fig 5: Rear Trim

Courtesy of BMW OF NORTH AMERICA, INC.
