51 71... Convertible Top Compartment Lid Seal Replacement

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Open rear end module.

Fig 1: Opening Rear End Module

Courtesy of BMW OF NORTH AMERICA, INC.

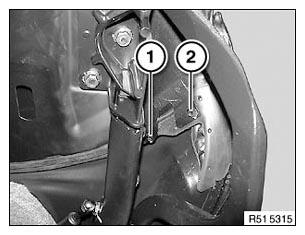

Release sheet screw (1) and thin sheet screw (2) on left and right.

Installation:

Make sure screws are installed in correct positions.

Fig 2: Release Sheet Screw And Thin Sheet Screw

Courtesy of BMW OF NORTH AMERICA, INC.

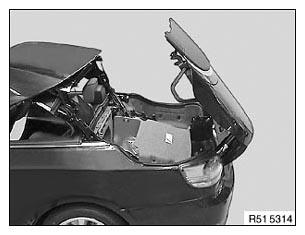

Retract folding roof fully and open rear end cover.

IMPORTANT: Do not stretch, kink or crush seal.

Pull off seal (1) from left to right.

Installation:

Moisten seal with soapy water.

Carry out installation from left to right (check screw fastening points).

Fig 3: Pull Off Seal From Left To Right

Courtesy of BMW OF NORTH AMERICA, INC.
