36 10 508 Stationary wheel balancing

Special tools required:

• 36 1 010
• 36 1 020

See WHEEL AND TIRES - SPECIAL TOOLS .

Necessary preliminary tasks:

• Remove wheel

Remove any fitted balancing weights, stones in tread pattern and larger contaminants.

Check tire pressure, check tire for condition, damage, flat spots (out-of-round caused by e.g. stopping the car with hot tires); if necessary, check wheel and tire for radial and lateral runout.

Fig 1: Identifying Wheel Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

Use BMW-approved centering elements of relevant balancing machine manufacturers.

1. Basic flange
2. Wheel centering element
3. Type flange
4. Clamping nut

Also refer to section on Workshop Equipment.

Fig 2: Identifying Clamping Nut, Type Flange, Wheel Centering Element And Basic Flange

Courtesy of BMW OF NORTH AMERICA, INC.

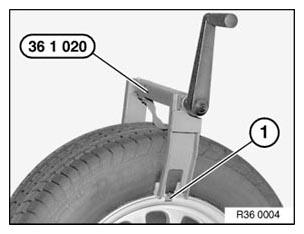

On light-alloy rims with distinctive J-shape rim flange, proceed as follows:

1. Gently force off tire side wall with special tool 36 1 020  at appropriate point from rim flange.
2. Install retaining clip (1).
3. Remove special tool 36 1 020  .

Fig 3: Identifying Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Raise retaining clip with special tool 36 1 010  . Slide balance weight underneath and allow it to snap into place.

Fig 4: Removing Retaining Clip With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement of balance weights for light-alloy rims with distinctive J-shape rim flanges.

1. Spring retainer
2. Balance weight

Adhesive weights must be used on all other light-alloy rims.

Max. imbalance per wheel.

Fig 5: Identifying Balance Weight And Spring Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
