36 12 084 Replacing sealant bottle of M-Mobility system

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Recycling

Observe country-specific waste-disposal regulations.

Raise luggage compartment floor at rear.

Remove M-Mobility system (1).

Remove sealant bottle underneath.

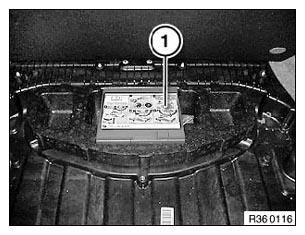

Fig 1: Identifying M-Mobility System

Courtesy of BMW OF NORTH AMERICA, INC.

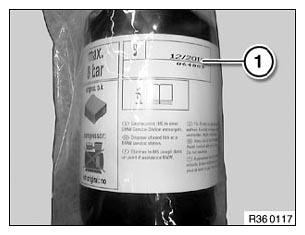

Check expiry date (1) on sealant bottle, replace if necessary.

Fig 2: Identifying Expiry Date

Courtesy of BMW OF NORTH AMERICA, INC.
