33 55 021 Replacing both rubber mounts for stabilizer mounting (M3)

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Rubber mounts (consisting of upper and lower sections) must be replaced in pairs.

Necessary preliminary tasks:

Remove stabilizer from rear axle carrier

IMPORTANT: When installing the stabilizer, make sure the two rubber mount halves are correctly installed and correctly engaged on both sides.

NOTE: Insert screwdriver on both sides between retaining bracket (1) and rubber mount upper section (2)/rubber mount lower section (3).

Snap out retaining bracket (1).

Remove rubber mount upper section (2) and rubber mount lower section (3).

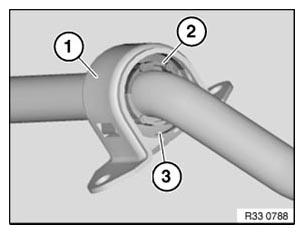

Fig 1: Identifying Rubber Mount Upper Section And Rubber Mount Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep retaining bracket, rubber mount lower section (1), rubber mount upper section (2) and stabilizer clean and free from oil and grease.

Mount rubber mount upper section (1) and rubber mount lower section (2) by way of edge (3) as pictured on stabilizer (observe direction of travel).

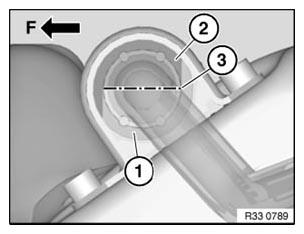

Fig 2: Identifying Rubber Mount Upper Section And Rubber Mount Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.
