00 11 ... Checking/topping up oil level in rear differential (M3)
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Scalding hazard!
Risk of burning on the exhaust system.
Risk of burning on the exhaust system.
IMPORTANT:
Risk of damage!
To avoid serious damage to the rear axle differential, it is essential to use only approved transmission oils in the rear axle differential. See REAR AXLE - OPERATING FLUIDS .
To avoid serious damage to the rear axle differential, it is essential to use only approved transmission oils in the rear axle differential. See REAR AXLE - OPERATING FLUIDS .

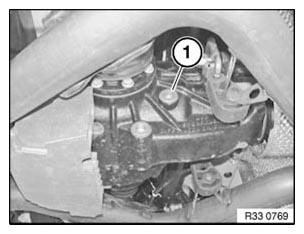

Undo oil filler plug (1).
Check oil level.
If necessary, pour in rear differential oil up to lower edge of opening for oil filler plug (1).
Installation:
Replace oil filler plug.
Tightening torque 33 11 3AZ . See 33 11 REAR DIFFERENTIAL CASE WITH COVER .
