33 11 151 Replacing shaft seal for drive flange left or right

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 010
00 5 500

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

32 1 060

See STEERING AND WHEEL ALIGNMENT - SPECIAL TOOLS

33 1 308
33 3 400
33 4 240
33 4 250
33 5 030

See REAR AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove drive flange from rear differential
If necessary, press off dust cover

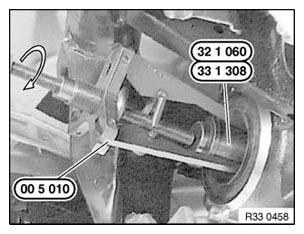

Withdraw shaft seal with special tools 00 5 010 and 32 1 060 / 33 1 308 .

Fig 1: Removing Shaft Seal With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Coat housing plate flange and sealing lips of new shaft seal with approved rear differential oil . See REAR AXLE - OPERATING FLUIDS .

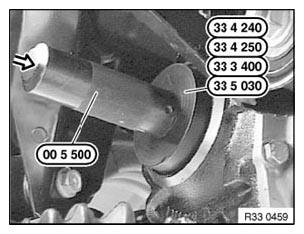

Drive in new shaft seal as far as it will go with following special tool(s) (depending on rear differential /outside diameter).

00 5 500 + 33 3 400 : 168K/L - 78x44x10

00 5 500 + 33 4 240 : 188K/L/LW - 90x44x10

00 5 500 + 33 4 250 : 215K/L/LW, 220K to 230K - 100x50x10

33 5 030 : 210, 215 with lock - 76x50x10

Fig 2: Installing Shaft Seal With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Correct gearbox oil level/change differential oil . See REAR AXLE - OPERATING FLUIDS .
