33 11 ... Replacing O-ring for side cover on rear differential on left or right (M3)

Necessary preliminary tasks:

• Remove drive flange from rear differential

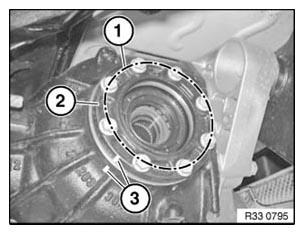

Mark installation position of side cover (2) to housing.

Release bolts along line (1).

Press cover (2) with two screwdrivers off housing.

Installation:

Markings (3) on cover and housing must match up.

Tighten screws crosswise.

Tightening torque 33 11 4AZ  . See 33 11 REAR DIFFERENTIAL CASE WITH COVER .

Fig 1: Identifying Side Cover And Markings

Courtesy of BMW OF NORTH AMERICA, INC.

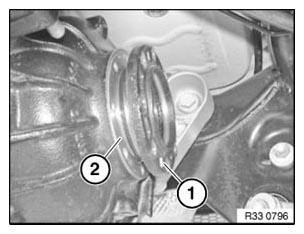

Raise mount and remove cover (1) with ring (2).

Installation:

Insert cover with ring in housing.

Raise mount and slide in cover as far as it will go.

Fig 2: Identifying Cover And Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

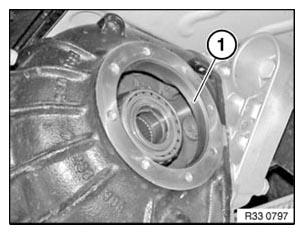

Clean contact surface (1) for O-ring all round.

Fig 3: Identifying Contact Surface For O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.

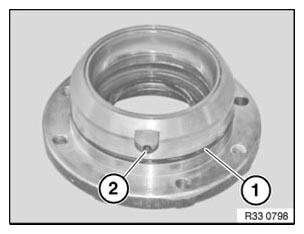

Replace O-ring (1).

Installation:

Keep drain opening (2) for gear oil clean.

Moisten O-ring with approved differential oil.

Fig 4: Identifying O-Ring And Drain Opening

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Check rear differential oil level  , correct if necessary
