51 75 001 Removing and installing/replacing left or right underbody cover
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Work shown on E90 by way of example, deviations in detail are possible in other models.

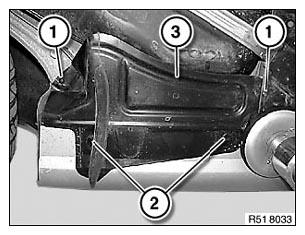

Release clips (1).
Release screws (2).
Remove underbody cover (3).
Installation:
Replaced damaged clips (1).
Make sure underbody cover (3) is correctly seated.
