33 33 101 Replacing two rubber mounts (rear) for rear axle carrier

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 140
33 4 142
33 4 147
33 4 149
33 4 431
33 4 434
33 4 435
33 4 436
33 4 437
33 4 441
33 4 442
33 4 443
33 4 444

See REAR AXLE - SPECIAL TOOLS .

Necessary preliminary tasks:

Lower rear axle carrier

If necessary, assemble special tools 33 4 140 , 33 4 142 and 33 4 147 as illustrated.

If necessary, screw new thrust pieces 33 4 149 with countersunk screws on special tool 33 4 140 .

Fig 1: Identifying Countersunk Screws On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Coat top edge of rubber mount with Circo Light.

Fit special tool 33 4 441 on rubber mount in such a way that edge of rubber mount disappears in special tool.

Oil special tool 33 4 436 slightly before use.

Align special tool 33 4 140 by way of openings in rubber mount.

NOTE: Ensure it is correctly supported on bearing bushing of rear axle carrier.

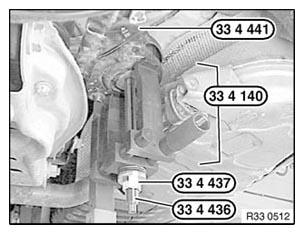

Withdraw rubber mount from bearing bushing with special tools 33 4 436 , 33 4 437 , 33 4 140 and 33 4 431 .

Fig 2: Removing Rubber Mount From Bearing Bushing With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat new rubber mount with Circo Light.

Insert special tool 33 4 444 in opening on rear axle carrier to avoid damaging the rear axle carrier when drawing in the rubber mount.

Oil special tool 33 4 434 slightly before use.

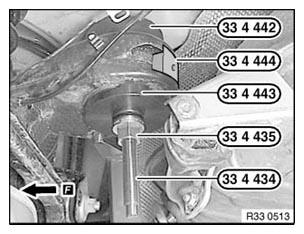

Assemble special tools 33 4 442 , 33 4 443 , 33 4 435 and 33 4 434 as illustrated.

Align rubber mount by way of arrow to direction of travel.

Draw in rubber mount as far as it will go.

Fig 3: Installing Rubber Mount With Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Bleed braking system . See 34 00 050 BLEEDING BRAKE SYSTEM WITH DSC .
